Pouch Cells Battery Sealing Machine Heating Top And Side For Laminated Aluminum Case
| Place of Origin | China |
|---|---|
| Brand Name | ZHIK |
| Certification | CE IOS |
| Model Number | ZK-HS200 |
| Minimum Order Quantity | 1 Piece |
| Price | USD1100/Set |
| Packaging Details | Wooden packing |
| Delivery Time | 24 |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15set/month |
Product Details
| Packaging Type | Pouch | Suitable Specifications | Top And Side Sealing≤190mm |
|---|---|---|---|
| Sealing Head Length | ≤200mm (customizable) | Soft Seal Temperature Of Upper Die | Standard 200℃ |
| Sealing Time | Standard 2S-3S（0-99s Adjustable） | Equipment Weight | 35Kg |
| High Light | Polymer Battery Heat Sealer,Pouch Cell Battery Heat Sealer Machine,Battery Sealing Machine |
||
Product Description
-

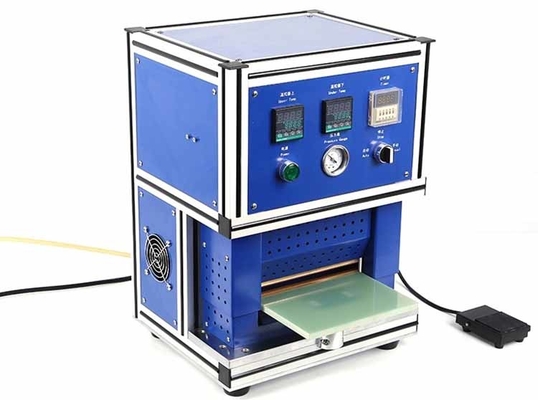

Pouch Cells Battery Heating Top And Side Sealing Machine For Sealing Laminated Aluminum Case
-
Lithium battery top side sealing machine
一. Features:

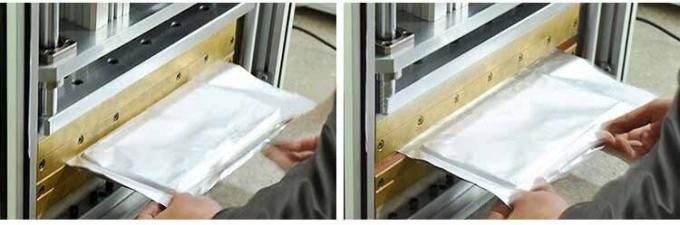

1. This device is mainly suitable for the package on the top and side of the soft lithium battery.
2. The resistance heat pipe is transferred to the head (copper), and the heat conduction effect is applied to the packaging material (aluminum plastic film) of the lithium battery. Under certain pressure, the heating temperature becomes soft and close to the melting state to complete the compaction and melting. And the top seal and the side seal are realized without changing the mold.
3. Unique safety protection and anti-hot design. The temperature of the upper and lower head can be adjusted by the button of the thermostat panel and the current value of the temperature; The sealing head is made of copper material with good heat transfer effect, saving electricity consumption, improving work efficiency and saving energy compared with similar products. The pressure of the upper and lower head can be adjusted by the pressure regulating valve to meet the requirements of different process parameters.
4. The upper and lower sealing head is driven by the cylinder through two linear guide sleeves, and the upper and lower activities are flexible, and the guidance is accurate to ensure the parallelism of the product after sealing the edge. It can be applied to different specifications of the product battery, and it is easy to adjust, without changing the head; Aluminum frame, beautiful appearance; Sheet metal adopts solid geometry design, simple and beautiful; Small size, smooth and even sealing mark, beautiful appearance of sealing edge
二. Parameter
1. Air Compression:≥6kg/cm2
2. Suitable Specifications:side sealing≤190mm , top sealing≤190mm(including air pocket)(customizable)
3. Sealing Head Length:≤200mm (customizable)
4. Seal Width:standard 3.2～6mm(customizable)
5. Sealing Edge Thickness:0.15-0.3mm(Depending on the thickness of the aluminum film)
6. Soft seal temperature of upper die:standard 200℃(Temperature adjustable as you need)
7. Temperature of lower die:standard 160℃-200℃(Temperature adjustable as you need)
8. Sealing time:standard 2S-3S(0-99s adjustable)
9. Air pressure working speed:≥400 times/hour
10. Sealing knife: adopt copper material
11. Power supply:AC220V/50Hz
12. Power:1.7KW
13. Equipment weight:35Kg
