Pre Clamped Lithium Battery Raw Material , 18650 Cylinder Cell Case

Name: Pre Clamped Lithium Battery Raw Material , 18650 Cylinder Cell Case
Brand: ZHIK
SKU: 18650
Price: 120 USD
Availability: InStock
Rating: 4.5 (132 reviews)

Place of Origin	China
Brand Name	ZHIK
Certification	CE IOS
Model Number	18650
Minimum Order Quantity	1 Box
Price	USD120-250/Box
Packaging Details	Standard export packaging
Delivery Time	5-10DAYS
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	10000 Box

Product Details

Dimensions (Dia X Height)

18mm(OD) X 17.5mm(ID) X 67mm(H)

High Light

18650 Cylinder Cell Case

18650 battery model

Cylindrical battery model

Leave a Message

Product Description

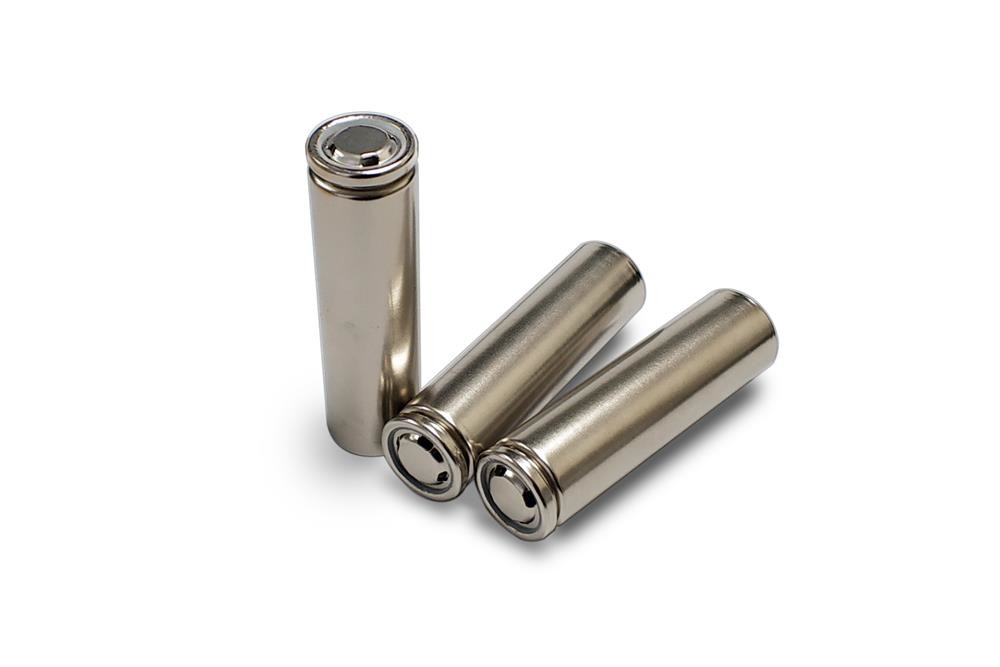

18650 Pre-Clamped Empty Cylinder Cell Case With Anti-Explosive Cap - 100 Pcs/Package

Note: These empty cylindrical cells are pre-clamped with the cap only and WITHOUT Cathode and Anode, they can NOT be used or charged as regular cylindrical batteries.

Specifications
Cap	Cap with Built-in PTC Thermistor for overcurrent protection Cut-off current is about 7A
Dimensions (Dia x Height)	Case: 18mm(OD) x 17.5mm(ID) x 67mm(H) Top Cap: 17.5mm(D) x 4.05mm(H) Top Insulator: 12.5mm(D) x 0.19mm(H) Bottom Insulator: 12.5mm(D) x 0.19mm(H)
Materials	Case and cap are made of Nickel plated A3 steel Seal O-ring and spacer are made of nylon No insulating gasket
Weight	9.50 g/pcs
Note	Safety valve's open pressure: 2.5MPa (the cap valve will open to release interior high pressure -- if over 2.5MPa -- to ensure the can does not explode) 18650 case's grooving and sealing machine is available upon request
