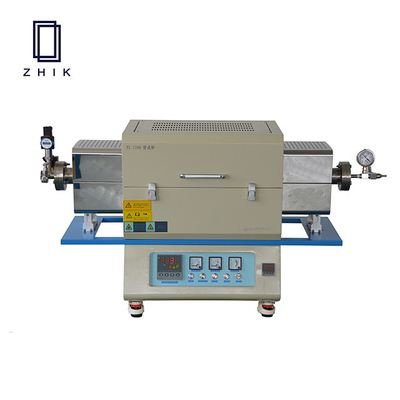

1700C Single Zone Laboratory Tube Furnace 5KW With Software Control System

Place of Origin	China
Brand Name	ZHIK
Certification	CE IOS
Model Number	ZK-TL1700
Minimum Order Quantity	1 Piece
Price	USD2100-4900/Piece
Packaging Details	Wooden packing
Delivery Time	24
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	15set/month

Product Details

Model	ZK-TL1700	Power	5KW
Voltage	380V	Control Precision	+/- 1 ℃
Rated Temperature	1650 ℃	Dimensions	1120X490X855(LWH)
High Light	1700C Laboratory Tube Furnace , High Temperature Tube Furnace , Tube Furnace for Lithium battery materials

Leave a Message

Product Description

High Temperature 1700C Single Zone Tube Furnace With Software Control System

Introduction

his tube furnace uses 1800 type silicon molybdenum rod as heating element, adopts double-layer shell structure and 50-stage program temperature control system, phase shift trigger, thyristor control, furnace with alumina polycrystalline fiber material, double There is an air-cooling system between the furnace shells, which can quickly raise and lower the temperature. The ends of the corundum tubes are sealed with stainless steel flanges. The flow rate is controlled by a flow meter. The furnace has a warm field balance, low surface temperature, fast temperature rise and fall, and energy saving. The advantages are the ideal products for high-temperature atmosphere sintering, atmosphere reduction, CVD experiment and vacuum annealing in universities, research institutes and industrial and mining enterprises.

Specifications

Model	1700-I	1700-II	1700-III
Power	5KW	5KW	6kw
Tube size(OD)(mm)	High purity corundum tube :60/80/100*1000mm(tube diameter optional) Two furnace plugs are placed on each side, the plug can block the heat radiation in the center of the tube, and must be placed in the correct position of the furnace before heating
Dimensions	1120X490X855	1120X490X855	1120X520X945
Supply voltage	220V
Phase	single phase
Heating element	· 1800 type MoSi2 heating element
Temperature control type	UAV program temperature control instrument (standard) 1, 30-stage program temperature control intelligent PID adjustment. 2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1720 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace). 3, with 485 communication interface (standard when purchasing software) 4, with power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure. 5, the meter has the function of temperature self-tuning
Chamber material	1. Furnace material, using high quality alumina polycrystalline fiber 2. The surface of the inner furnace is coated with imported 1800 degree high temperature alumina coating, which can increase the emissivity and make the temperature field more balanced.
Valve and flange
Control precision	+/- 1 ℃
Trigger	· Phase-shifted trigger
Electric appliance	Zhejiang chint
Silicon controlled	· 106/16E SEMIKRON
Maximum temperature	1700 ℃
Rated temperature	1650 ℃
Heating rate	≤20 ℃/ Min (it can be modified as required)
Recommended rate of temperature rise	≤10 ℃/ Min
Thermocouple Type	B Type
Heating length	300mm
Temperature curve
Peripheral surface temperature	≤45℃
