Vacuum Sealing Battery Cell Making Machine 3 In 1 5KW power 110V 220V

  • Vacuum Sealing Battery Cell Making Machine 3 In 1 5KW power 110V 220V
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-ZY4
Minimum Order Quantity 1 Sets
Price USD50000-75000/Sets
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-ZY4 Power 5KW
Voltage 110V/220V Battery Length 24-45mm
Airbag Width ≥32mm Total Battery Length ≤60mm
High Light

3 in 1 liquid injection machine

,

Pouch battery liquid filling and sealing machine

,

Automatic liquid injection and sealing machine
Leave a Message
Product Description

Pouch Battery Pilot line semiauto 3 In 1 Vacuum Sealer sealing machine w Integrated Electrolyte Injection & Diffusion St



3 in 1 liquid injection machine

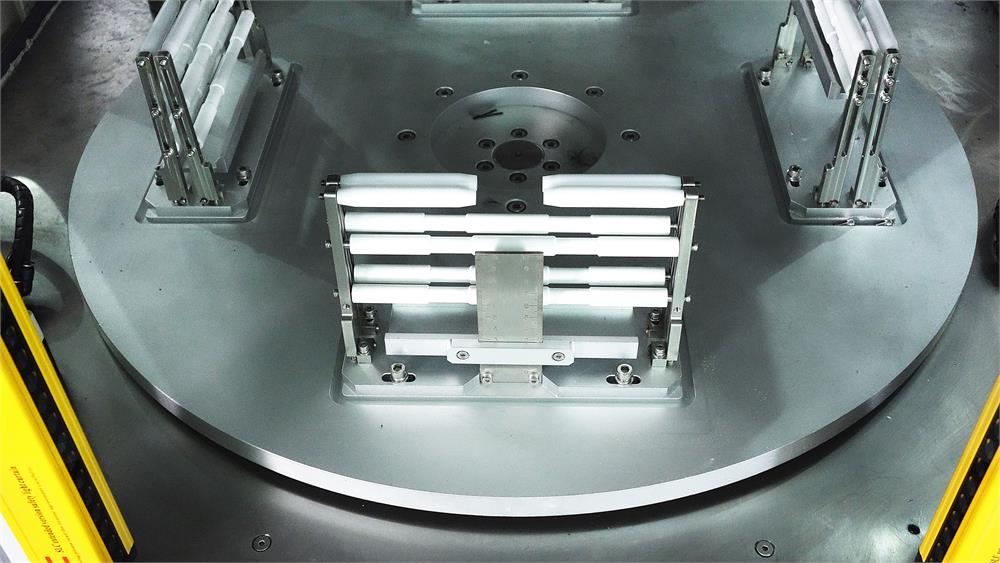

ZK-ZY4 is a semi-auto three-in-one vacuum sealer with a four-position rotational platform for the stream-flow processes of
pouch battery fabrication including electrolyte injection, electrolyte diffusion & degassing and vacuum hot sealing. It features
an air-tight chamber with a front observation window and operation gloves which allow the operation under moisture and oxygen free
environment. In this technique, the pouch cell is loaded in station#1 following the electrolyte injection in station#2. Then, the
cell will be transferred to station#3 for vacuum degassing & diffusion which helps with electrolyte wetting over the electrode
materials. Finally, the cell will be transferred to station#4 for gas removal and hot seal under vacuum condition. This is an
ideal system for pilot scale pouch battery manufacturing with accurate and efficient workflow.





Vacuum Sealing Battery Cell Making Machine 3 In 1 5KW power 110V 220V 0
1
Battery size chart
A
Battery length
24-45mm
B
Airbag width
≥32mm
C
Total battery length
≤60mm
D
Total battery width
45-95mm
E
Battery thickness
2.5-10mm
2
Liquid injection method
normal state liquid injection
3
Liquid injection accuracy
± 1% (liquid pump accuracy is ± 0.5 ‰)
4
Head pressure
0.1Mpa—1Mpa The minimum adjustment accuracy is 0.1Mpa
5
Stand time
0.5S—99S adjustable Accuracy: ± 0.2S
6
Head temperature
adjustable from room temperature to 250 ℃ Accuracy ± 5 ℃
7
Heating rate of the head
The time for room temperature to reach 200 ℃ is less than 15 minutes
8
Packaging effect
Flat surface, no wrinkles, no bubbles, good sealing
9
One-time pass rate
99% (except for bad incoming materials)
10
Marriage rate
95%
11
Equipment efficiency
about 22ppm (depending on battery technology and operator proficiency)
