1.92mm Thickness Lithium Ion Battery Testing Equipment 200 Degree For Zinc Air Battery

Place of Origin	China
Brand Name	ZHIK
Certification	CE IOS
Model Number	STC-ZINCAIR-W
Minimum Order Quantity	1 Set
Price	USD600-1000/Set
Packaging Details	Wooden packing
Delivery Time	14
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	15set/month

Product Details

Max. Working Temperature	200°C	Bottom Recess Area	16mm Dia
Dimensions	Φ80×62mm	Valves & Fittings	Two Stainless Steel Needle Valves And 1/16" Tube Connector Is Installed On Both Gas Inlet And Outlet
Quartz Observation Window	Diameter = 9.3mm Quartz Observation Window Allows The X-Ray Beam Penetration.	Thickness	1.92mm
High Light	Three Electrode Split Test Cell , battery Split Test , Two Electrode Split Test Cell

Leave a Message

Product Description

In-situ Analytical Split Test Cell w/ Window for Lithium/Zinc Air Battery R&D

It contains a quartz observation window on the bottom which allows in-situ X-Ray analysis of battery material phase transition during charging and discharging process. Two needle valves allow you control air flow pressure and its splittable design provides you the most convenient way to test various anode and cathode materials. It's an excellent tool for Lithium/Zinc Air Battery Research.

SPECIFICATIONS:

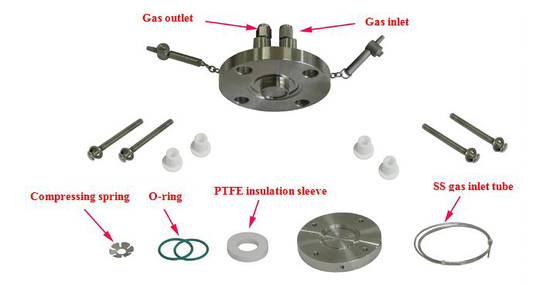

Structure	316 Stainless Steel Structure ensures high electrical conductivity and good corrosion protection Two electrodes design Internal compress spring ensures a good metal contact of the electrodes Electrolyte corrosive-proof PTFE Guide Sleeve and Sealing O-rings 10mm Dia. x 1mm Thick Quartz Observation Window allows X-Ray and infrared beam penetration.
Bottom Recess Area	16mm Dia. (The recess area can accomodate the electrodes with size upto 16mm dia.)
Quartz Observation Window	Diameter = 9.3mm Quartz Observation Window allows the X-Ray beam penetration. Thickness = 1.92mm Recessed Spacing = 6.00 mm
Max. Working Temperature	200°C
Valves & Fittings	Two Stainless Steel needle valves and 1/16" tube connector is installed on both gas inlet and outlet
Dimensions	Φ80×62mm
Compliance	Certified
