8 Channel Battery Testing Equipment , Battery Analyzer Tester 5V 10mA

Place of Origin	China
Brand Name	ZHIK
Certification	CE ISO
Model Number	ZK-BTS
Minimum Order Quantity	1 Set
Price	1200
Packaging Details	Wooden packing
Delivery Time	14
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	15set/month

Product Details

Power

25W

Input Resistance

≥1MΩ

High Light

8 Channel Battery Testing Equipment

5V10mA Batter Analyzer

Batter Capacity Tester

Leave a Message

Product Description

8channel 5V10mA Battery Testing Equipment Analyzer Tester Analyse Capacity

Product Description

The dQ / dV curve mainly reflects the phase change of the positive and negative active materials during charging and discharging. According to the data of the button battery, we can find the phase change corresponding to the different characteristic peaks in the dV / dQ curve, and then Or we can qualitatively infer the cause of the reversible capacity loss of the lithium-ion battery during the storage process of the dQ / dV curve, and provide a reliable reference for the design of the lithium-ion battery.

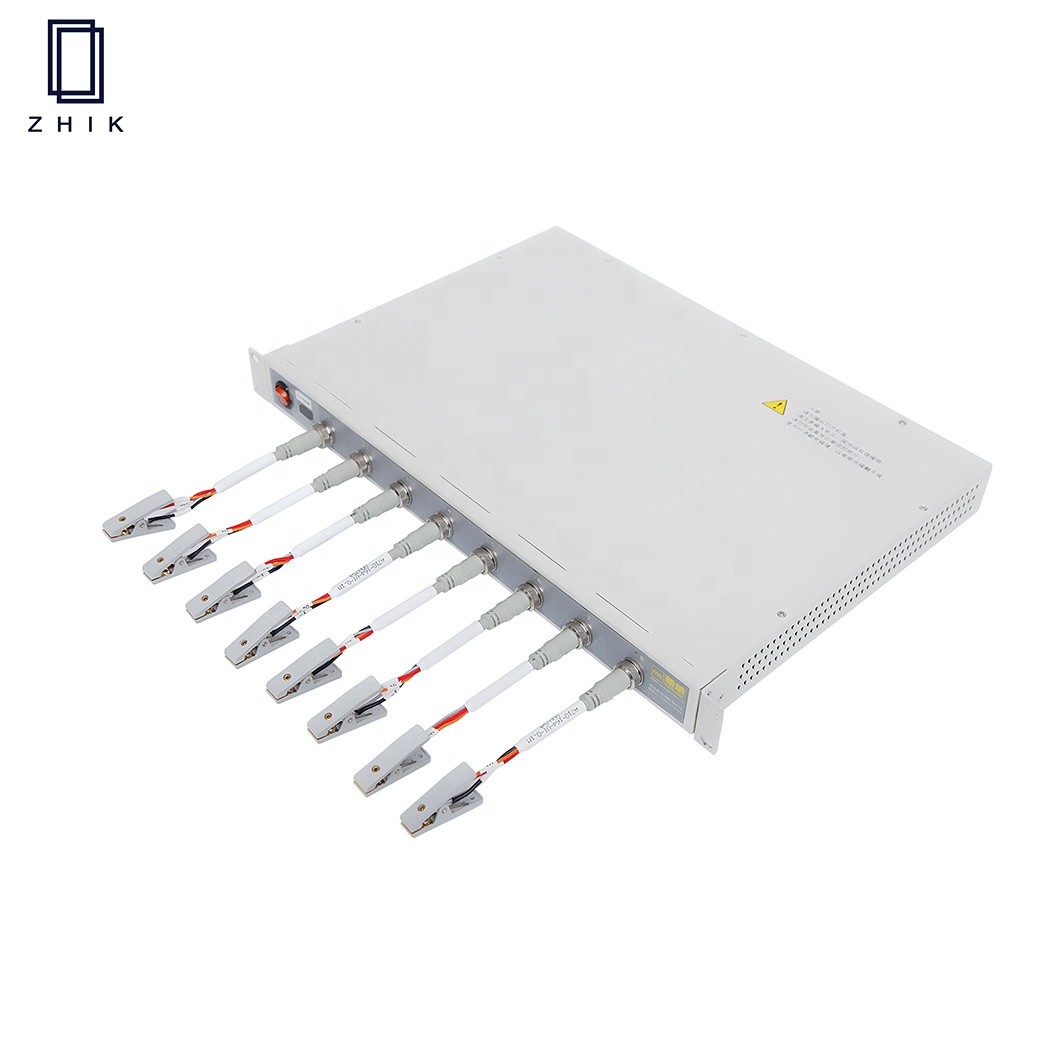

8 Channel Battery Testing Equipment , Battery Analyzer Tester 5V 10mA 0

Technical Parameter

Project index		Parameter index
Input Power		AC 220V ±10% /50Hz/110V
resolution		AD:16bit；DA:16bit
Input Resistance		≥1MΩ
Input Power		25W
Channel Features		Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
Channel Control Mode		Independent Control
Voltage	Per Channel Control Voltage Range	25mV~5V
	Minimum discharge voltage	-5V
	Accuracy	± 0.05% of FS
	Stability	± 0.05% of FS
Current	Per Channel Current Range	Range 1:5uA~1mA；Range 2:1mA~5mA； Range 3:5mA~10mA
	Cut-off current of CV	Range 1:2uA；Range 2:0.01mA；Range 3:0.02mA
	Accuracy	± 0.05% of FS
	Stability	± 0.05% of FS
Power	Per Channel Output Power	0.05W
	Stability	± 0.1% of FS
Time	Current Response Time	＜500 us (10%FS~90%FS)
	Step Time Range	≤(365*24 )hour/step, Time Form Support 00:00:00:00(h,min,s,ms)
Data Recording	Record Condition	Time△t:100ms
		Voltage△U:10mV
		Current△I:Range1:2uA；Range2:0.01mA；Range3: 0.02mA
	Record Frequency	10Hz
Charge	Charge Mode	Constant Current Charge,Constant Voltage Charge, Constant Current and Constant Voltage Charge,Constant Power Charge
	End Conditon	Voltage,Current,Relative Time,Capacity,-△V
Discharge	Discharge Mode	Constant Current Discharge,Constant Power Discharge,Constant Resistance Discharge
	End Condition	Voltage,Current,Relative Time,Capacity
DCIR test supported
Pulse Test	Charge	Constant Current Charge,Constant Power Charge
	Discharge	Constant Current Discharge,Constant Power Discharge
	Minimum Pulse Width	500ms
	Pulse Number	32 diffirent pulse for a single step
	Charge And Discharge Switch	continuous switched for a single pulse step
	End Condition	Voltage,Relative Time
Cycle	Loop Measure Range	1~65535 times
	Max Steps Per Loop	254
	Nested Loop	Nested loop Function,Max Support 3 Layers
Protection	Software Protection	l Power-down Data Protection
		l Off-line Testing Function
		l Setting Protection Condition,Setting Parameter:Low Voltage limit,Upper Voltage limit,Low Current limit,Upper Current limit,Delay Time
	Hardware Protection	Additional Anti-reverse Protection Model
Voltage and Current Testing Sample		4-wire connecting
Noise		<85dB
Database		MySQL Database
A Means of Communication of Upper Machine		TCP/IP Protocol
Data Output		EXCEL 2003,2010,TXT
Communication Interface		Internet Access
Server Operating System		Windows 7,64bit or Above
leak current		0.0000002mA
Per Unit Main Channels No.		8
Dimensions(WDH)(mm) per unit		1U(164),48331048
